| Square Iron | |
|---|---|
| Üretim Standartı | TS EN 10059 |
|
Genişlik Ölçüsü (Width Dimension) |
10, 12, 14, 16, 18, 20, 22, 24, 25, 30 35, 40, 50, 60, 70, 90, 100, 120 130, 140, 150 |
|
Uzunluk (Length) |
4000 mm - 18000 mm |
|
Kalite (Quality) |
S235JR, S275JR, S275J2 S355JR, S355J2, 1020, 1040, CK45 |

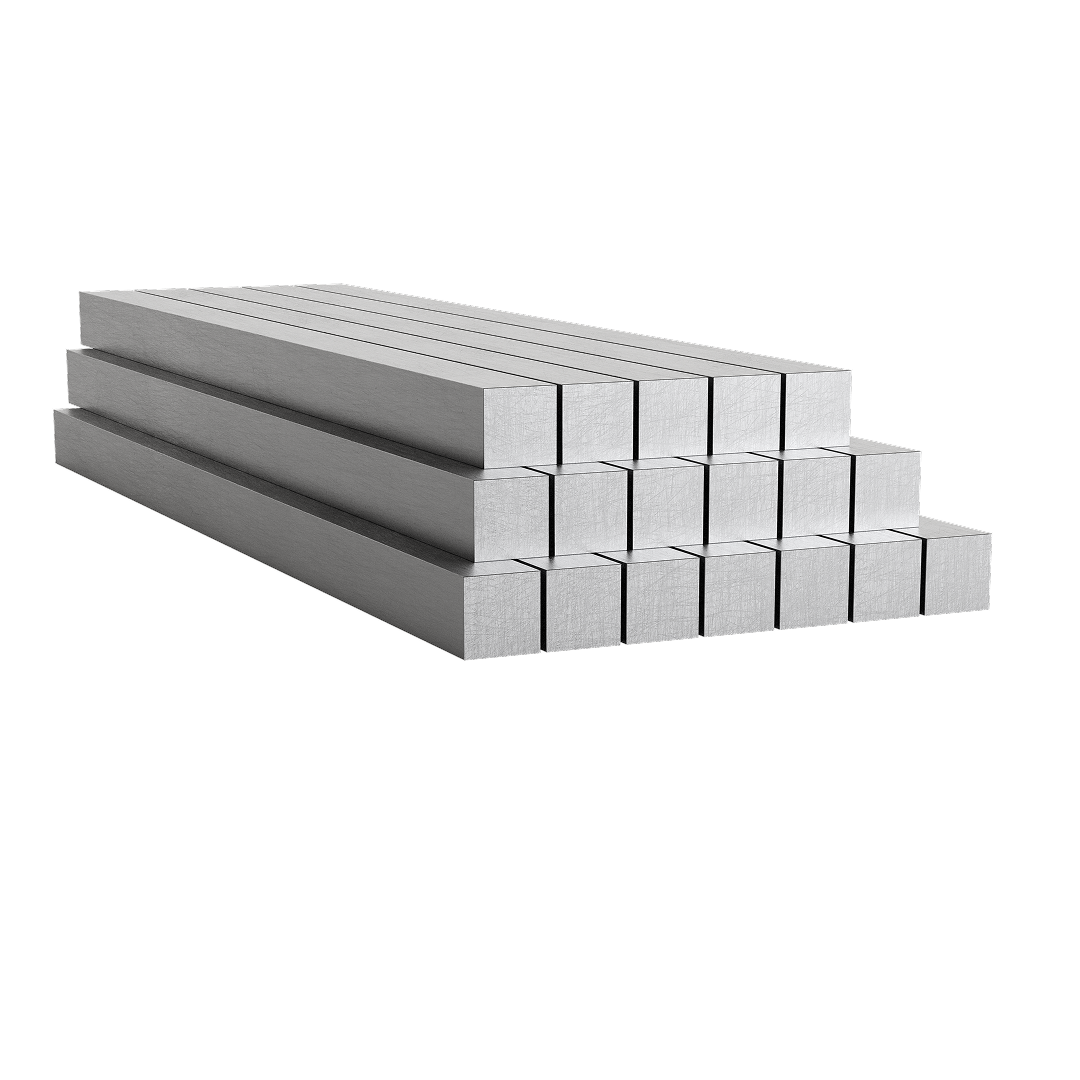

Square iron is a solid iron and steel product with a square cross-section. It is widely used in construction, manufacturing, agriculture and many other fields. They are irons with a completely filled square cross-section. They are preferred in applications requiring high strength and durability. S235JR ( ST37 ), S275JR ( ST44 ), S355JR ( ST52 ) Quality, hot rolled square shaped metal materials with a thickness between 8.00 mm and 250.00 mm. The standard is 6 MT. Special size production can also be made according to the desired size according to the project situation.
Features of Square Iron:
Material: They are usually made of carbon steel.
Dimensions: The dimensions of square irons are determined by the edge length and wall thickness. They can be produced in different sizes and thicknesses.
Surface: Their surfaces are usually smooth. It can be optionally galvanized or different surface treatments can be applied.
Advantages of the Square Iron:
High Strength: It has high tensile and yield strength. This feature increases the capacity to carry heavy loads.
Easy Processability: It can be easily shaped by processes such as cutting, drilling, welding and bending.
Diversity: Available in different sizes and thicknesses to suit a variety of applications.
Economical: It is generally more economical than other structural steel profiles.
| Kare Demirleri | TS 911 |
| Square Bars | DIN 1024 |
| Ebat (Size) |
Ağırlık |
| axa | Weight |
| mmxmm | kg/m |
| 8x8 | 0,50 |
| 10x10 | 0,79 |
| 12x12 | 1,13 |
| 14x14 | 1,54 |
| 16x16 | 2,00 |
| 18x18 | 2,54 |
| 20x20 | 3,14 |
| 22x22 | 3,80 |
| 25x25 | 4,91 |
| 30x30 | 7,07 |
| 35x35 | 9,62 |
| 40x40 | 12,60 |
| 45x45 | 15,90 |
| 50x50 | 19,60 |
| 55x55 | 23,80 |
| 60x60 | 28,30 |
| 65x65 | 33,20 |
| 70x70 | 38,50 |
| 75x75 | 44,20 |
| 80x80 | 50,20 |
| 85x85 | 56,70 |
| 90x90 | 63,60 |
| 100x100 | 78,50 |
| 110x110 | 95,00 |
| 120x120 | 113,00 |
| 130x130 | 132,70 |
| 140x140 | 153,90 |
| 150x150 | 176,60 |
| 160x160 | 201,00 |
| 170x170 | 226,90 |
| 180x180 | 254,30 |
| 190x190 | 283,40 |
| 200x200 | 314,00 |
| 250x250 | 490,60 |
Steel construction and steel roof manufacturing,
Shipbuilding manufacturing,
Agriculture and machinery industry manufacturing,
Fence and barrier manufacturing,
Wrought iron manufacturing,
Furniture manufacturing,
Elevator manufacturing,
Automotive and automotive supply industry
